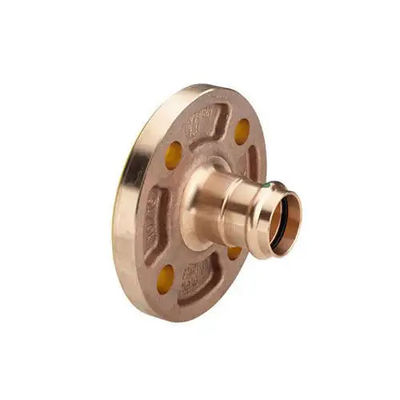

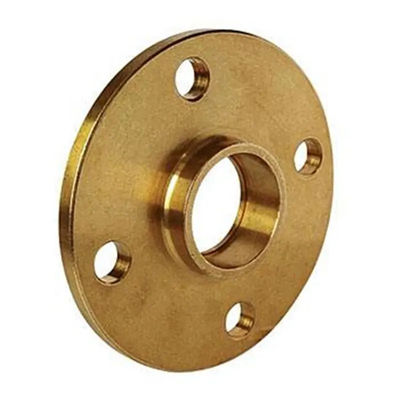

ANSI B16.5 1'' Class 150/300/600 RF Copper Nickel Steel Welding Pipe Flanges
| Plaats van herkomst | China |
|---|---|
| Merknaam | TOBO/ METAL |
| Certificering | BV/ SGS/ TUV/ ISO |
| Modelnummer | Koperen nikkelflens |
| Min. bestelaantal | 1 st |
| Prijs | Negotiatable |
| Verpakking Details | van gecompliceerd hout |
| Levertijd | 15 werkdagen |
| Betalingscondities | Western Union, l/c, t/t |
| Levering vermogen | 100000000 stuk/stuk per maand |
Productdetails
| Productnaam | De Flenzen van het kopernikkel | Kopergehalte | 70% Koper |
|---|---|---|---|
| Verbindingstype | Lashals, instapper, blind, met schroefdraad | Materiaal | Koperen nikkellegering |
| Bewerkbaarheid | eerlijk | Ductiliteit | Goed |
| Treksterkte | 450 MPa | Corrosiebestendigheid | Uitstekend in zeewater en mariene omgevingen |
| hoofdcode | Ronde | Klas | 150, 300, 600, 900, enz. |
| Oppervlakteafwerking | Glad, machinaal | Dikte | 3x2,5 mm |
| Gebruik | Machanicaldelen | Afdichtende oppervlaktevorm | RF MFM TG RJ |
| Inspectie | 100% röntgen, kleurstof, ultrasoon | Kleur | Aangepaste kleuren |
| Markeren | ANSI B16.5 copper nickel flange,Class 150 RF welding flange,steel pipe flange with warranty |
||
Productomschrijving
ANSI B16.5 1'' Class 150/300/600 RF Copper Nickel Steel Welding Pipe Flanges
Product Description
Our 1'' Class 150 RF copper nickel steel flanges are high-performance pipe connecting fittings designed for industrial piping systems, fabricated from premium copper nickel alloy with excellent corrosion resistance and mechanical strength. Manufactured in strict accordance with ASME B16.5 / ANSI B16.5 standards, these welding flanges feature a raised face (RF) finish to ensure tight and leak-proof sealing when matched with gaskets.
With a nominal size of 1 inch and pressure class of 150#, these flanges are suitable for medium-pressure piping applications in marine engineering, seawater treatment, chemical processing, and offshore facilities. The copper nickel material provides outstanding resistance to seawater corrosion, stress corrosion, and various corrosive media, greatly extending service life in harsh working environments.
The welding-type structure ensures strong connection integrity and high structural stability. Precision forging and machining guarantee accurate dimensions, smooth surface finish, and good compatibility with copper nickel pipes. Each flange undergoes strict quality testing, including dimensional inspection, pressure testing, and material verification, to meet international industrial standards. Widely used in pipeline connection, maintenance, and modification projects, these copper nickel welding flanges provide reliable, durable, and safe solutions for critical piping systems.
| Specifications | Copper Nickel Flanges - ASTM B151 / ASME SB151 |
|---|---|
| Grades | Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640 |
| ASME B16.5 Copper Nickel Flanges size range | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Copper Nickel Flanges Standards | BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges. |
| Copper Nickel Flanges Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Copper Nickel Flanges Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Copper Nickel Flanges Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Copper Nickel Flanges Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Copper Nickel Flanges Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Copper Nickel Pipe Flanges Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most common types of Copper Nickel Flanges |
|
| Production technique |
|
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove |
| Special design |
As per your drawing AS, ANSI, BS, DIN and JIS Copper Nickel Flanges Threaded Flanges, Socketweld Flanges, Slip-On Flanges, Blind Flanges, Weld Neck Flanges |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Origin | China |
| Specialized manufacturer of |
|
| Copper Nickel Flanges Standard |
ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
|
| Key markets and industries for Copper Nickel Flanges |
|
| Export to | Thailand, Singapore, Canada, Iran, Spain, USA, Ukraine, Oman, Indonesia, India, Korea, Brazil, Ireland, Dubai, Egypt, Peru, Saudi Arabia etc |
| Copper Nickel Flanges Application |
|
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
Product show
Why Choose Us?
1. 20 + years of production experience at your service.
2. The fastest delivery
3. The lowest price
4. Most comprehensive standards and materials for your choice.
5. 100% export.
6. Our products export to Africa, Oceania, mid east, eastern Asia, Western Europe etc.
Packing & Shipping
Packaging Details: Pallet/Wooden Case or as per your Specification
Delivery Detail: Shipped in 30 days after payment
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance ,balance before shippment.
