C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger
| Plaats van herkomst | Sjanghai, China |
|---|---|
| Merknaam | TOBO |
| Certificering | ISO/TUV/SGS |
| Modelnummer | Koper-nikkel pijp |
| Min. bestelaantal | 1 st |
| Prijs | Onderhandelbaar |
| Verpakking Details | Standaard verzendpakket |
| Levertijd | 15-30 werkdagen |
| Betalingscondities | T/T, Western Union |
| Levering vermogen | 10 ton/maand |
Productdetails
| Productnaam | C71500 naadloze koper-nikkelbuizen, precisie voor warmtewisselaar | Gebruik | Bouwdecoratie |
|---|---|---|---|
| Opbrengststerkte | Hoog | Verbinding | Lassen |
| Temperatuurclassificatie | 400°F | Bewerkbaarheid | Goed |
| Verbindingsmethoden | brazen, lassen, solderen | Techniek | Koud getrokken, warm gewalst |
| Prodcut | Koper-nikkel pijp | Techniek | Gieten |
| Diameterbereik | 1/2 inch tot 24 inch | Materiaal Samenstelling | Koper-nikkellegering (gewoonlijk 90/10 of 70/30 Cu-Ni) |
| Sollicitatie | Airconditioning of koelkast | Maat | Aangepast |
| Wanddikte | Schema 10 tot schema 40 | Levering | volgens hoeveelheid |
Productomschrijving

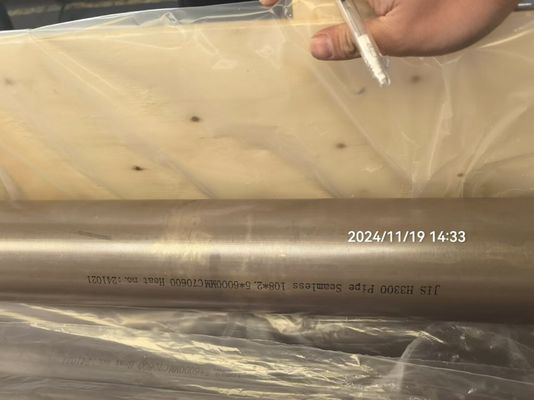

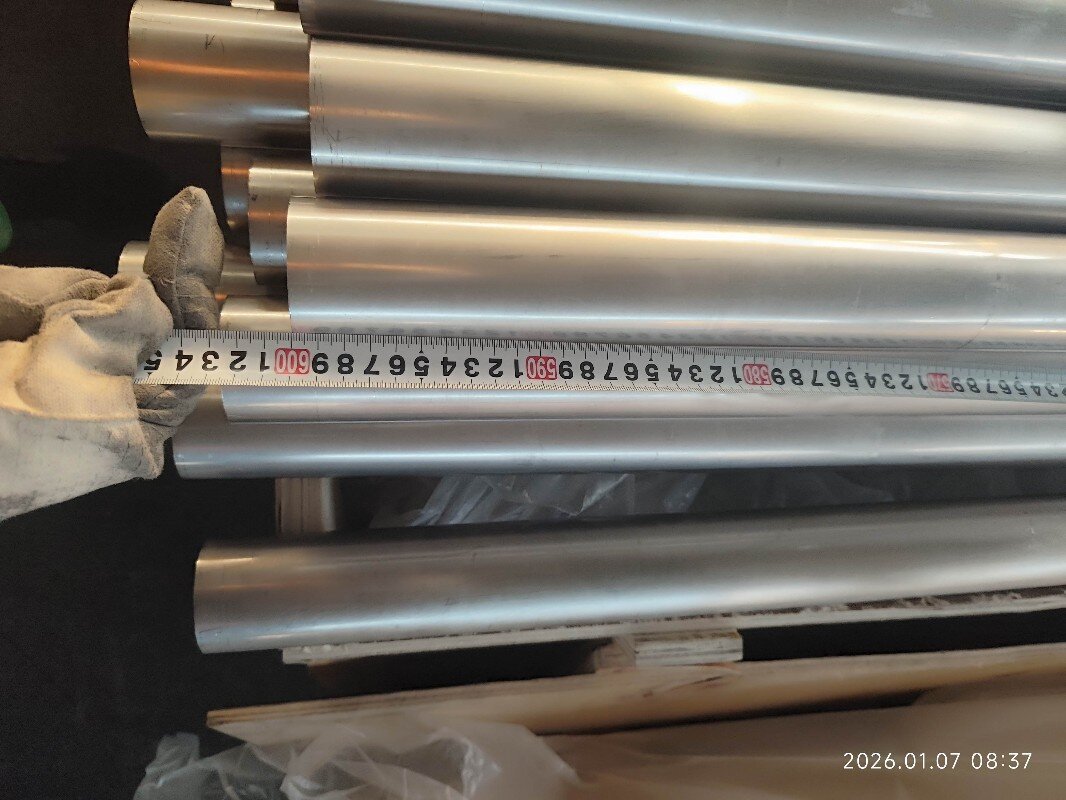

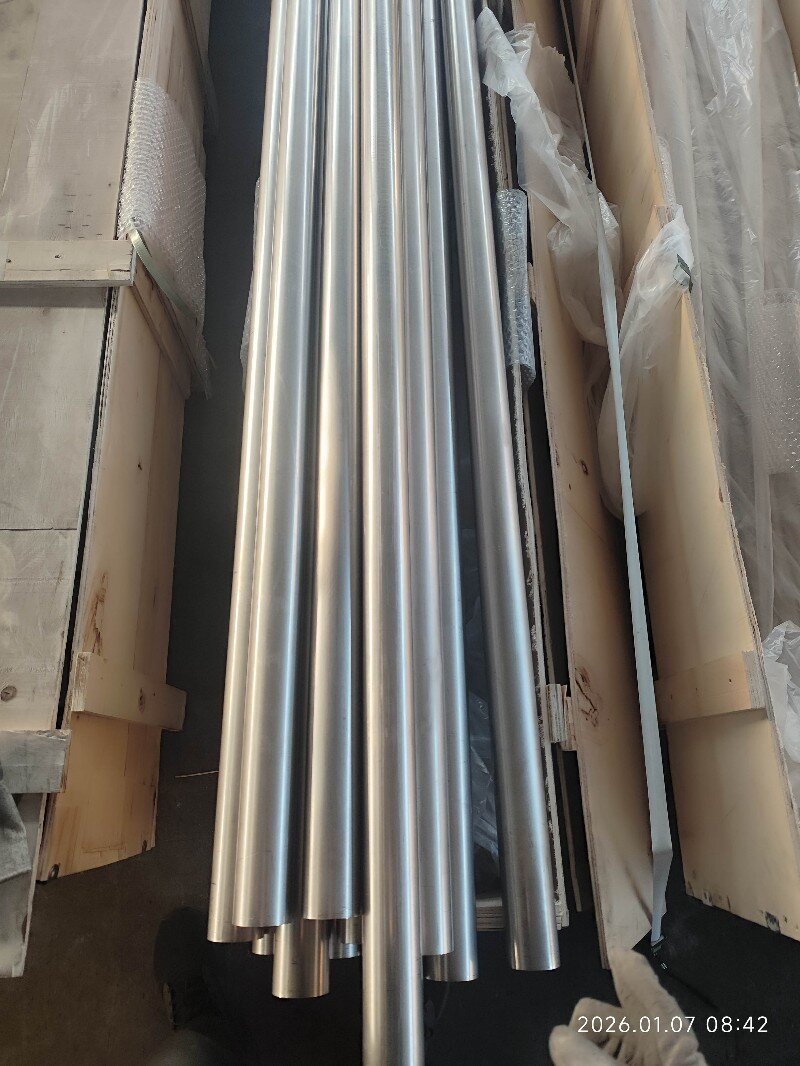

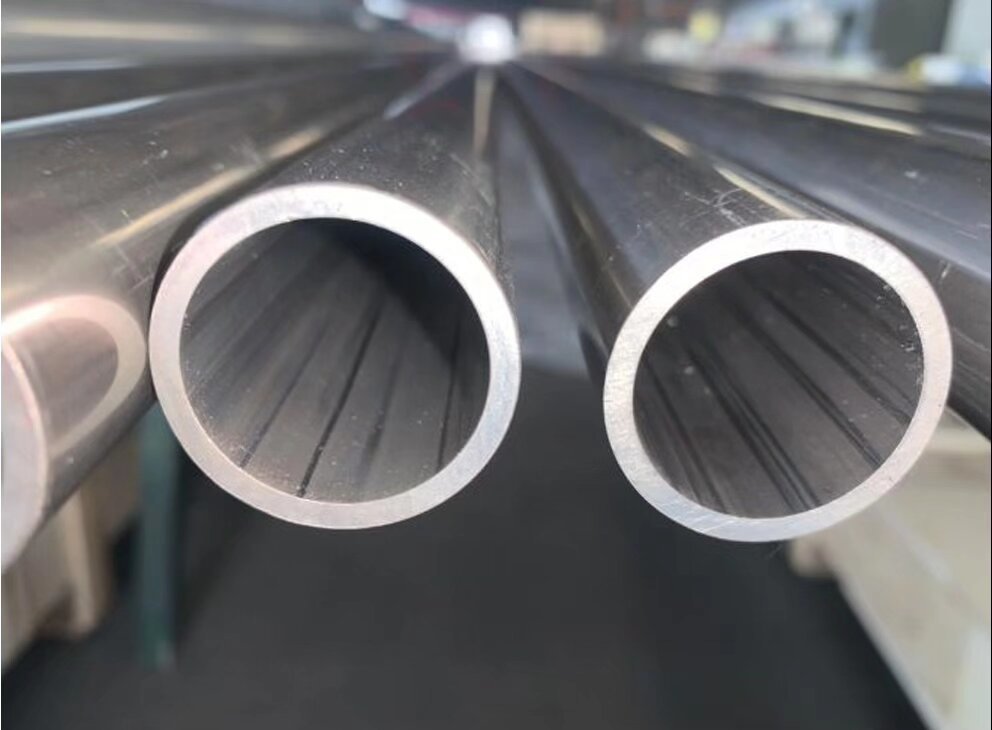

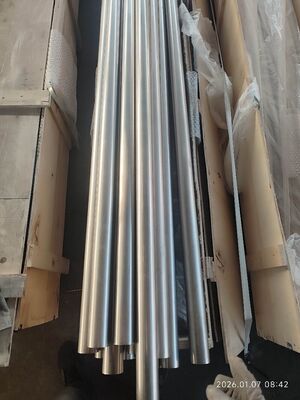

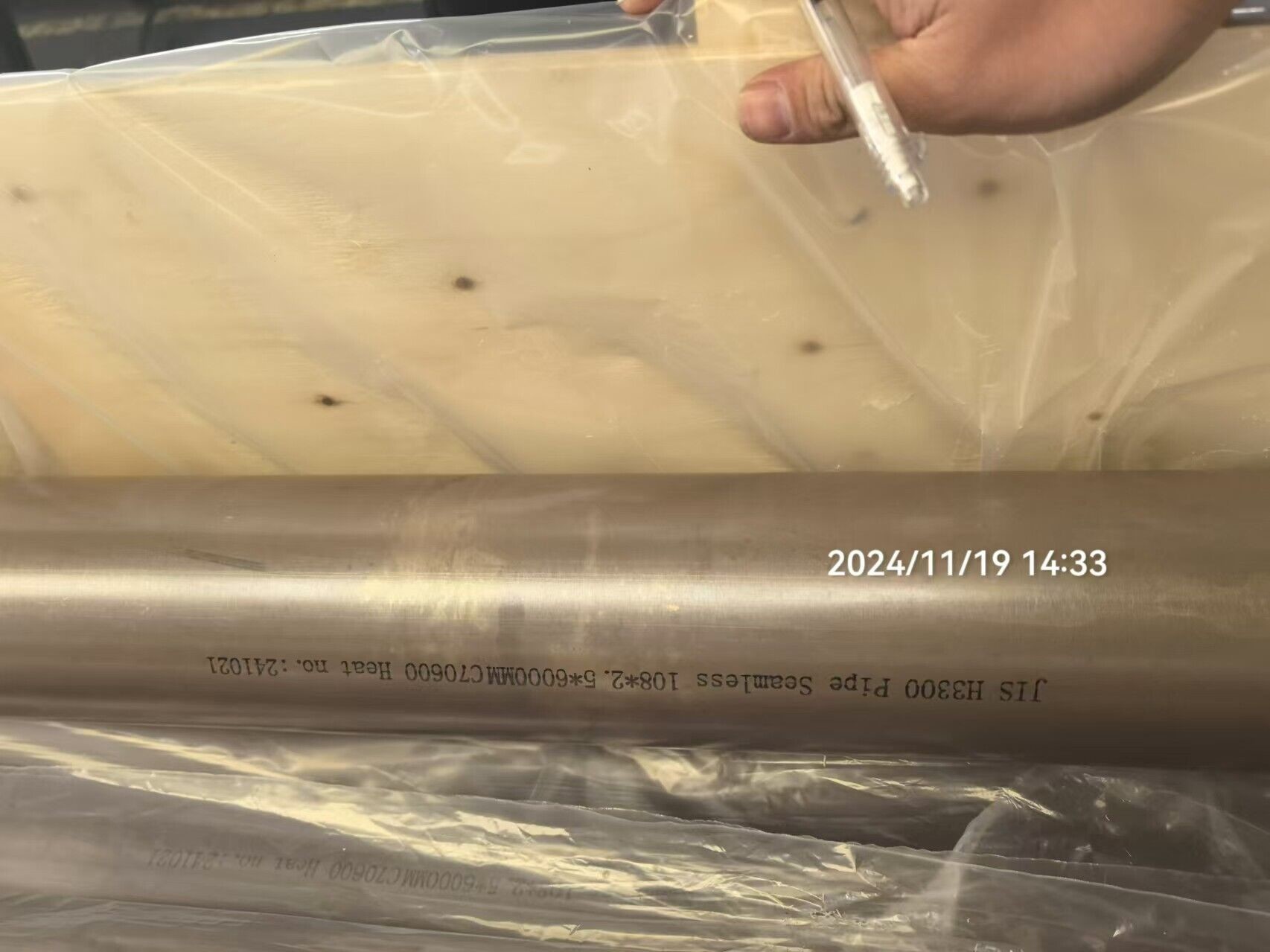

C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger
1.Product Introduction
Copper nickel pipe is a high‑performance alloy tube manufactured from Cu‑Ni systems, primarily grades 90/10 (C70600) and 70/30 (C71500), with controlled additions of iron and manganese. Available in seamless and welded forms, it complies with ASTM B466, ASTM B111, ASME SB111, EN 12451 and JIS H3300. It is the preferred material for seawater and corrosive fluid handling.
2.Product Advantages
-
Outstanding resistance to seawater, brackish water, and brine corrosion.
-
Natural biofouling protection – copper ions inhibit marine organism attachment.
-
High resistance to erosion‑corrosion and impingement attack.
-
Excellent weldability, formability, and thermal conductivity.
-
Exceptional longevity – proven service life over 50 years in marine systems.
-
Immune to chloride stress‑corrosion cracking (SCC).
-
Lower weight than steel for equivalent pressure ratings.
-
More economical than titanium or high‑nickel alloys.
3.Product Applications
-
Shipbuilding & offshore – seawater cooling, ballast, fire‑fighting, and sanitary piping.
-
Oil & gas platforms – topside process lines, subsea umbilicals, and riser cladding.
-
Desalination – evaporator tubes and brine heaters.
-
Power generation – condenser tubes and cooling water circuits.
-
Industrial heat exchangers – chemical, petrochemical, and food processing.
-
Marine renewable energy – tidal/wave generator cooling systems.
-
Aquaculture – seawater supply and fish cage structures.
-
Automotive & aerospace – brake lines, power steering tubes, and aircraft ducting.
4.Key Product Parameters
| Parameter | 90/10 (C70600) | 70/30 (C71500) |
| Composition (wt%) | Cu ≥88.6, Ni 10, Fe 1.4, Mn 0.8 | Cu ~70, Ni ~30, Fe 0.6, Mn 0.5 |
| Tensile Strength (MPa) | 303 – 414 | 350 (typical) |
| Yield Strength Rp0.2 (MPa) | 110 – 393 (temper dependent) | 120 (typical) |
| Elongation (%) | 42 | 35 |
| Elastic Modulus (GPa) | 140 | 140 |
| Thermal Conductivity (W/m·K) | 50 | 29 |
| Density (g/cm³) | 8.90 | 8.95 |
| Melting Range (°C) | 1080 – 1120 | 1170 – 1240 |
| OD Range – Seamless (mm) | 6 – 159 | 6 – 159 |
| OD Range – Welded (mm) | up to 419 | up to 419 |
| Wall Thickness – Seamless (mm) | 0.5 – 8.0 | 0.5 – 8.0 |
| Wall Thickness – Welded (mm) | up to 10.0 | up to 10.0 |
| Standard Lengths | 6 m, 12 m, or custom | 6 m, 12 m, or custom |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2. How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. 3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
